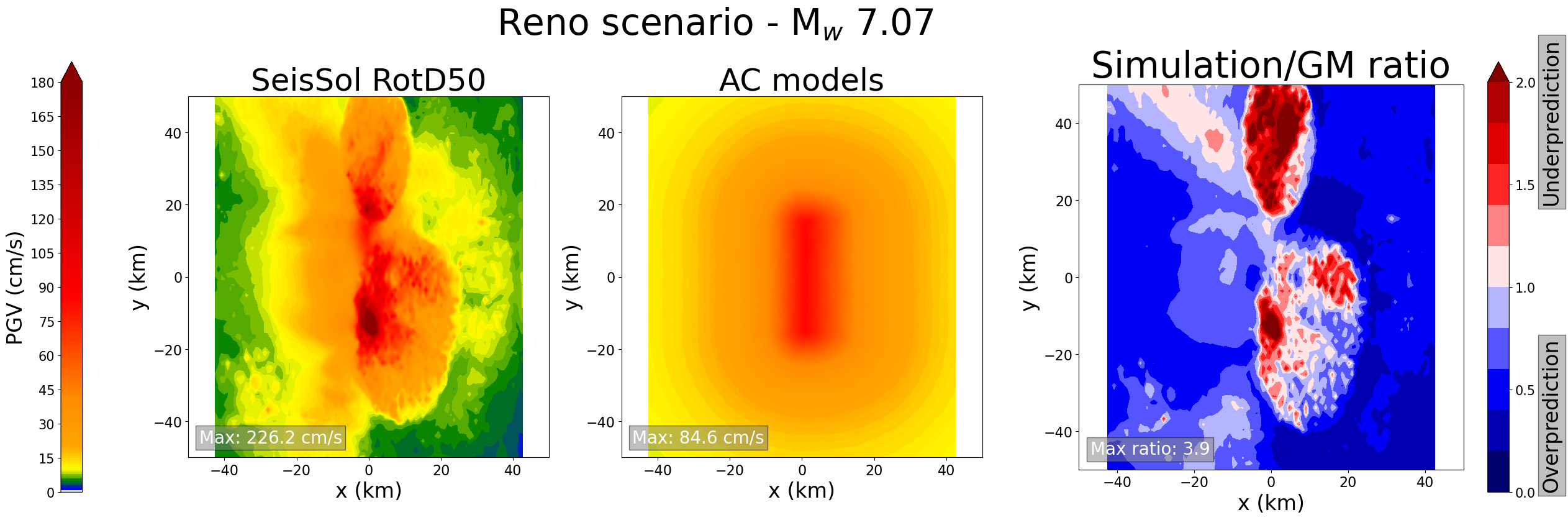

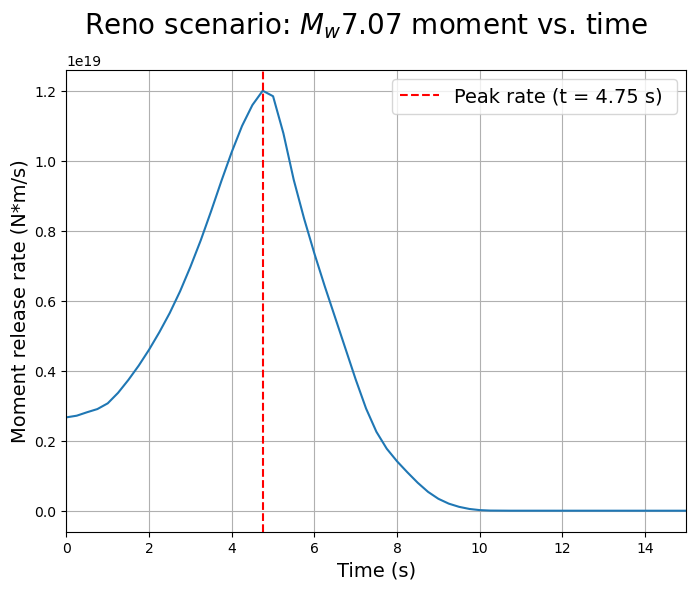

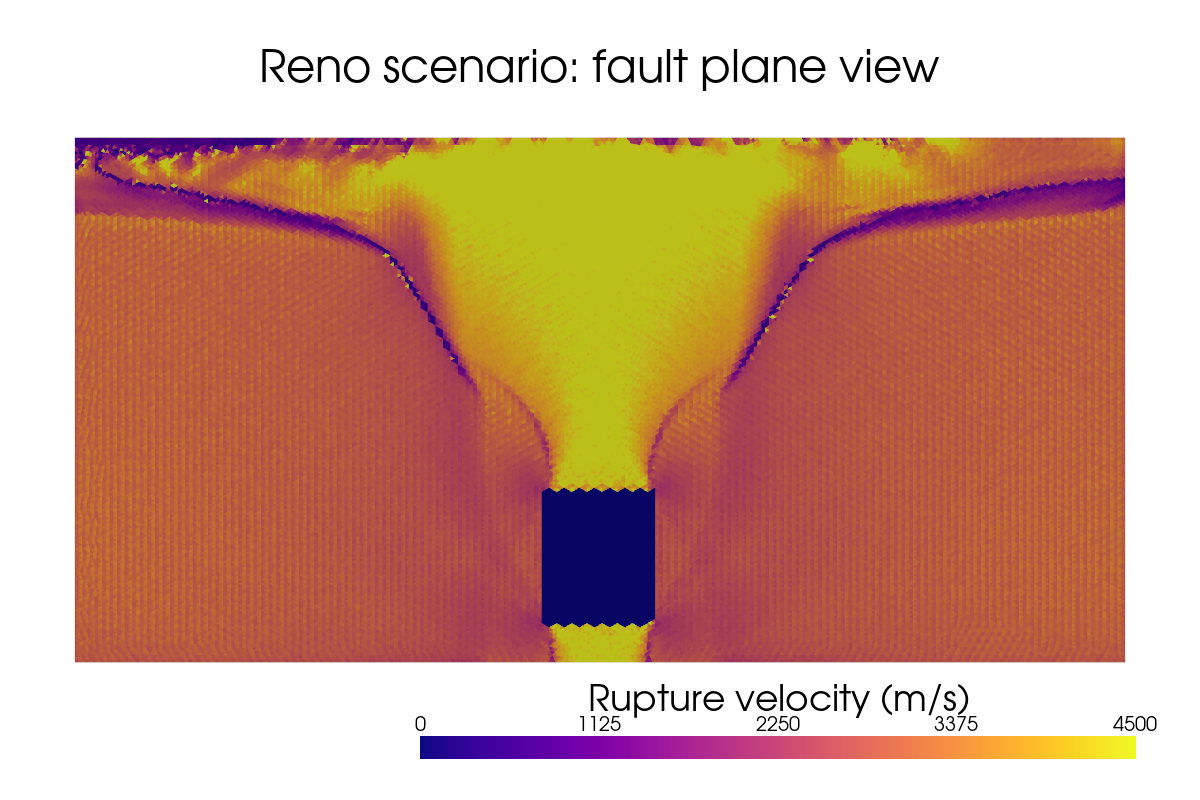

Reno Scenario

Simulation setup loosely based on TPV 13

Fault dip	55°
Nucleation method	Low-friction patch
Plasticity	On
Simulation length	45 s
Time steps	0.25 s

Please note the title in this figure is a correction from the poster, but it is the same data.

Variable Dip Scenarios

Visit the additional material page for my AGU 2025 poster to see the real-time animations for these simulations.

These attributes apply to all simulations below unless otherwise noted.

Nucleation method	High-stress patch
Plasticity	Off
Simulation length	30 s
Time steps	0.1 s
Nucleation patch depth	12 km downdip

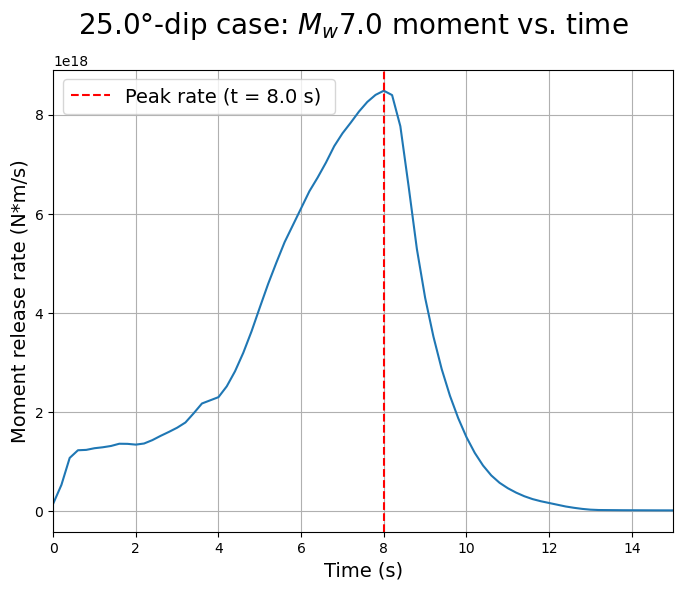

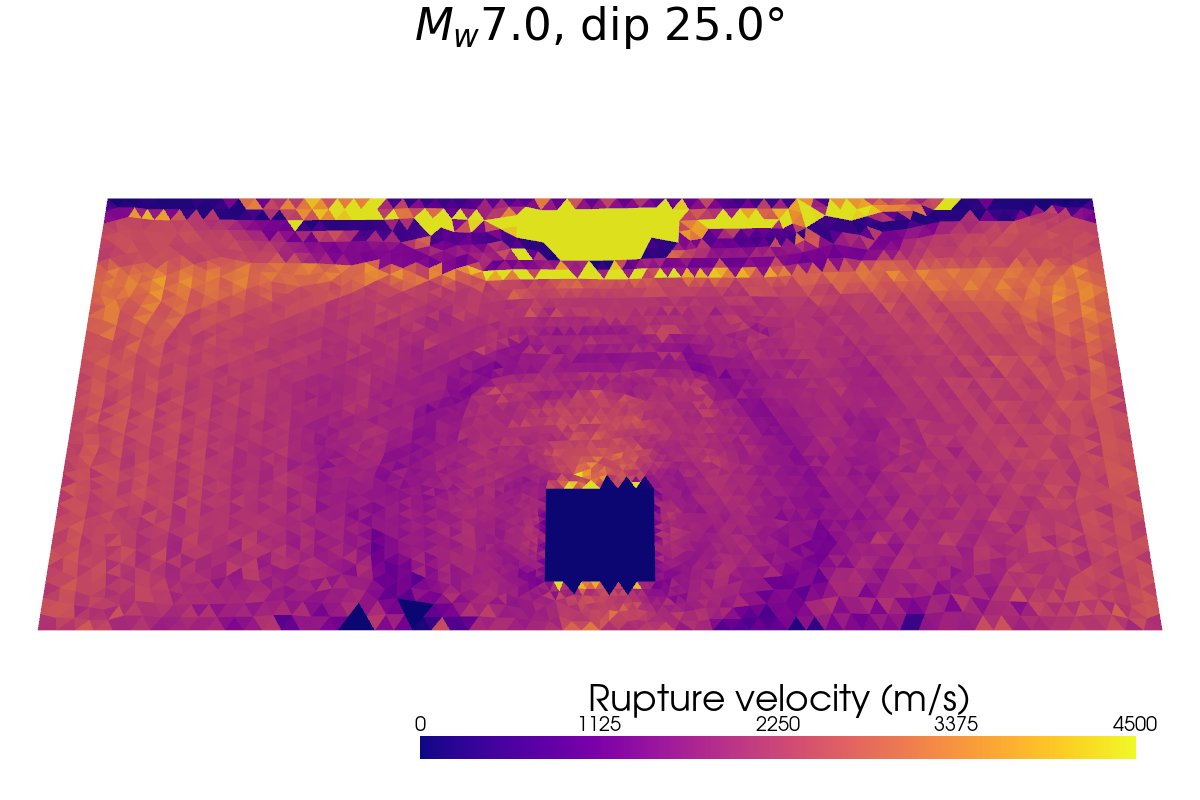

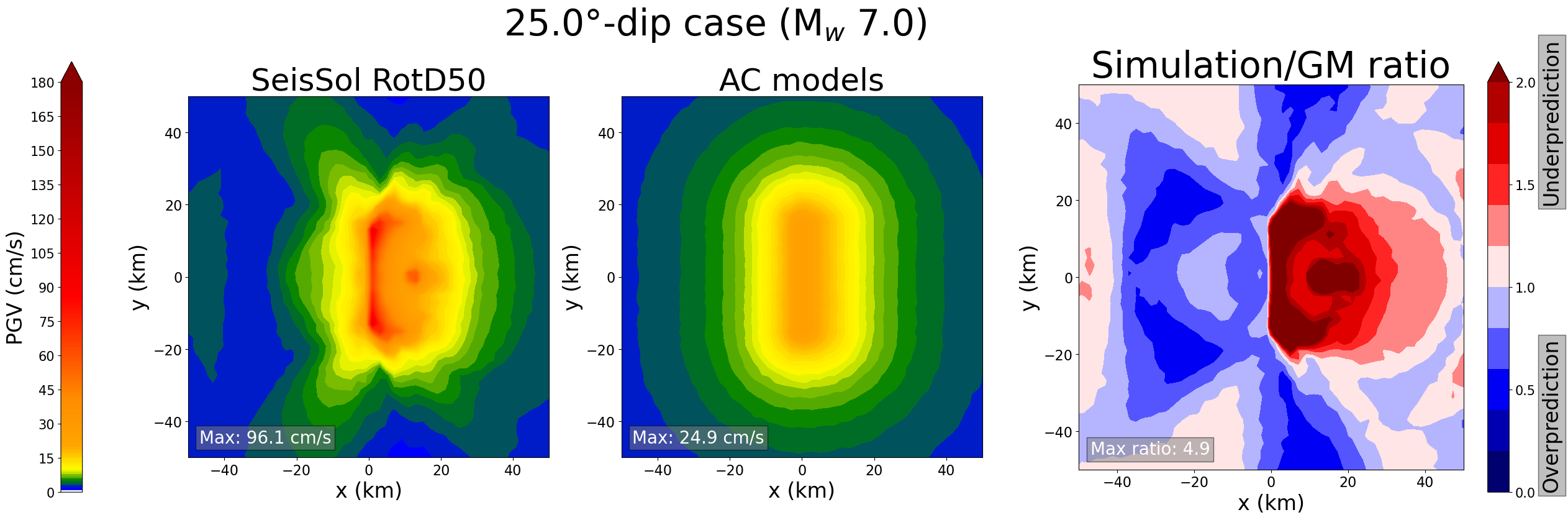

25° case

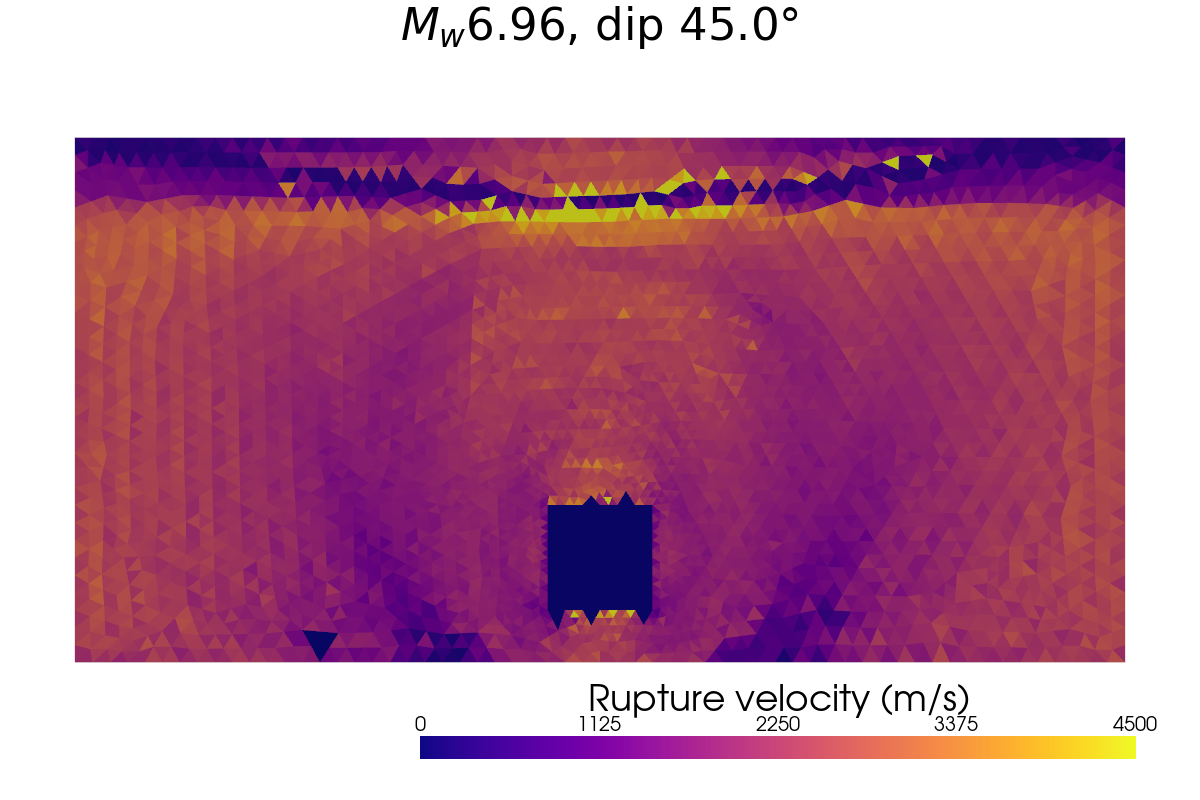

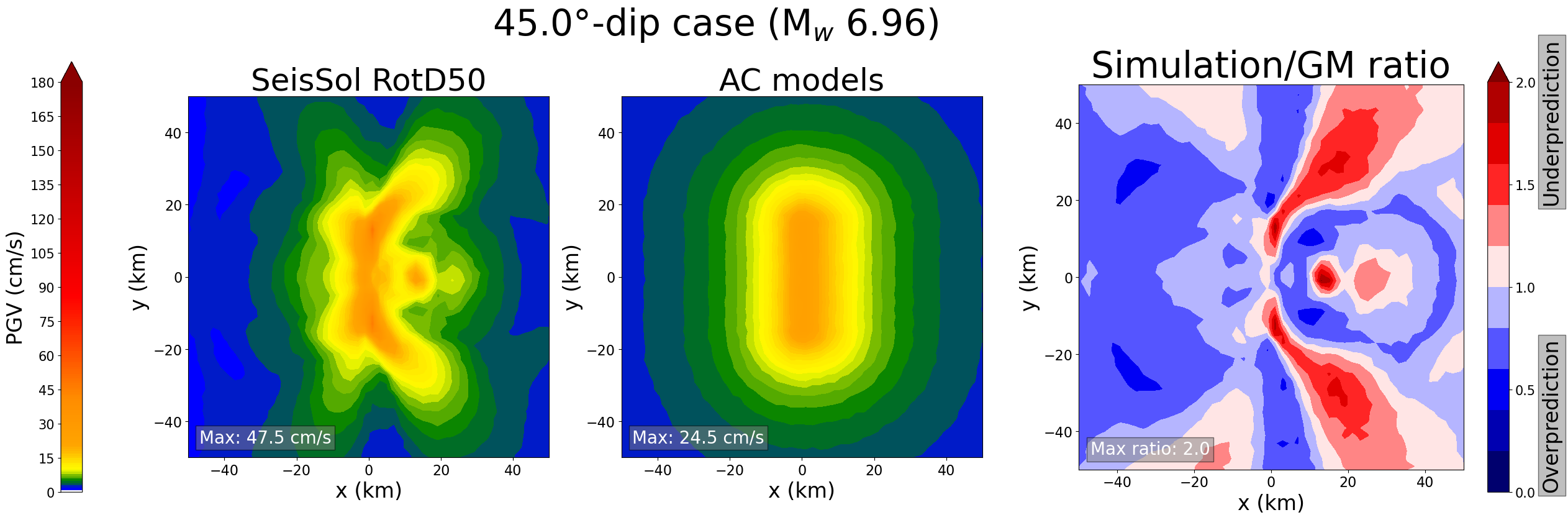

45° case

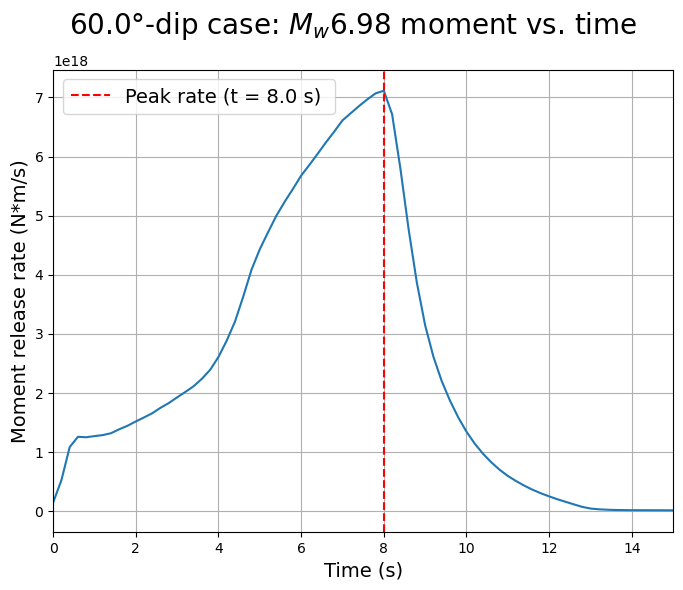

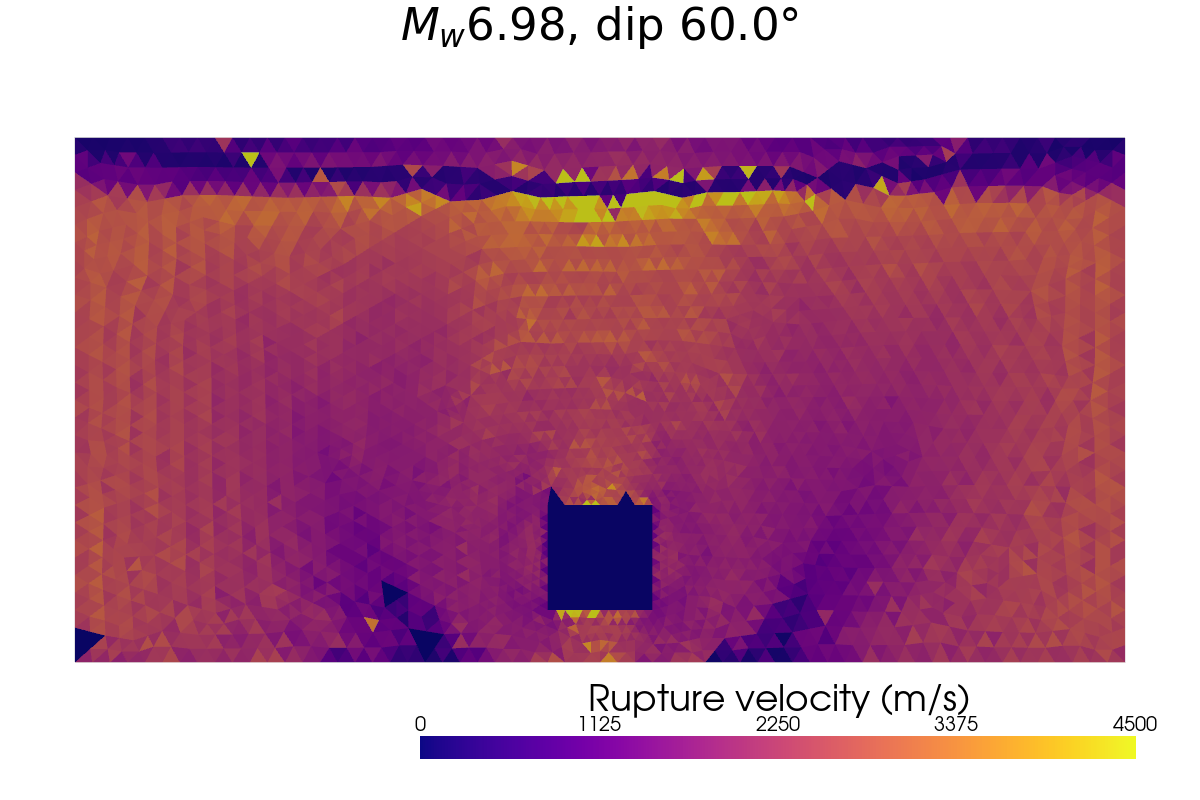

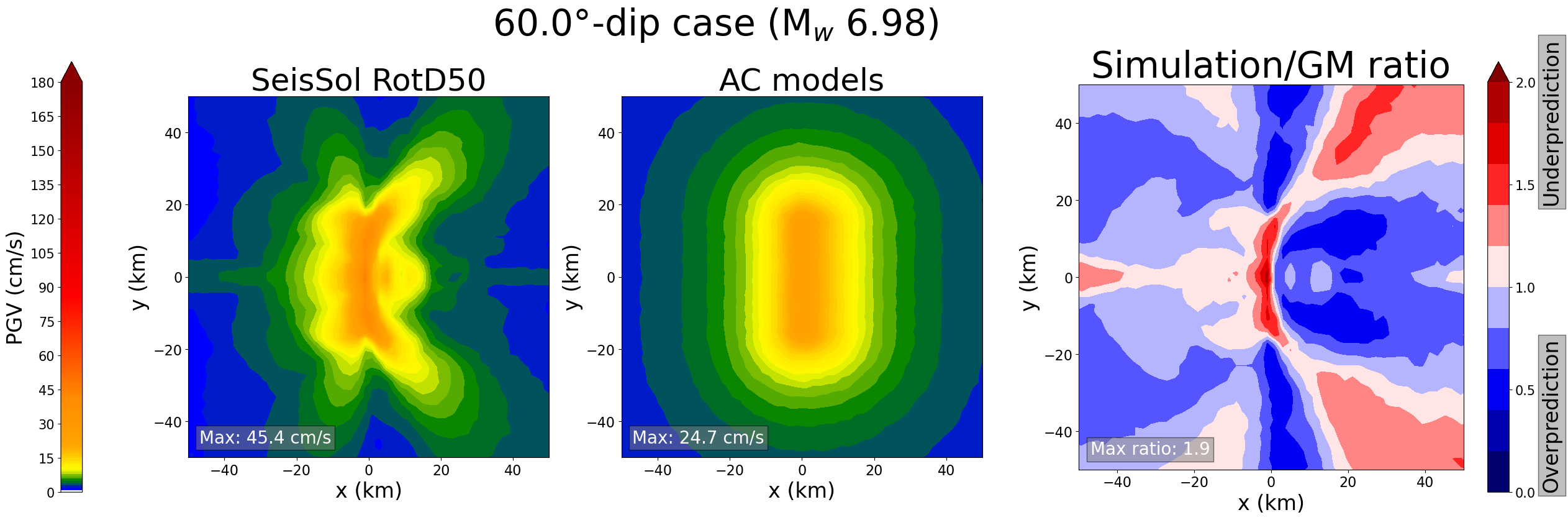

60° case (TPV 10)

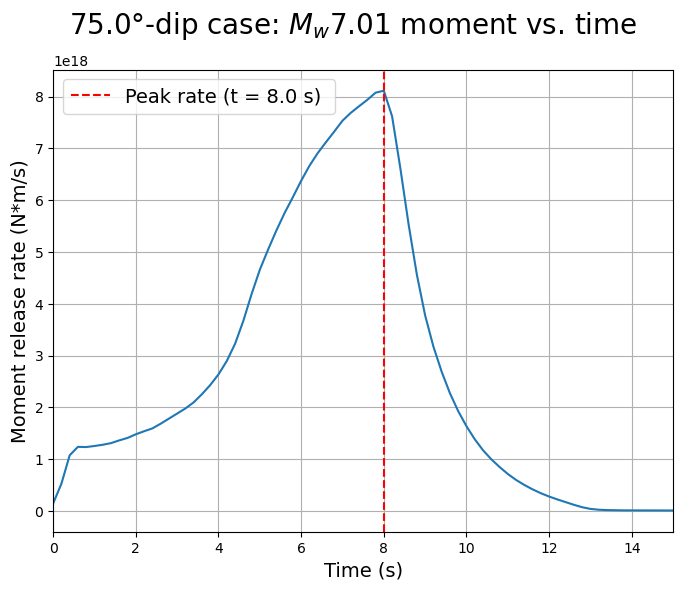

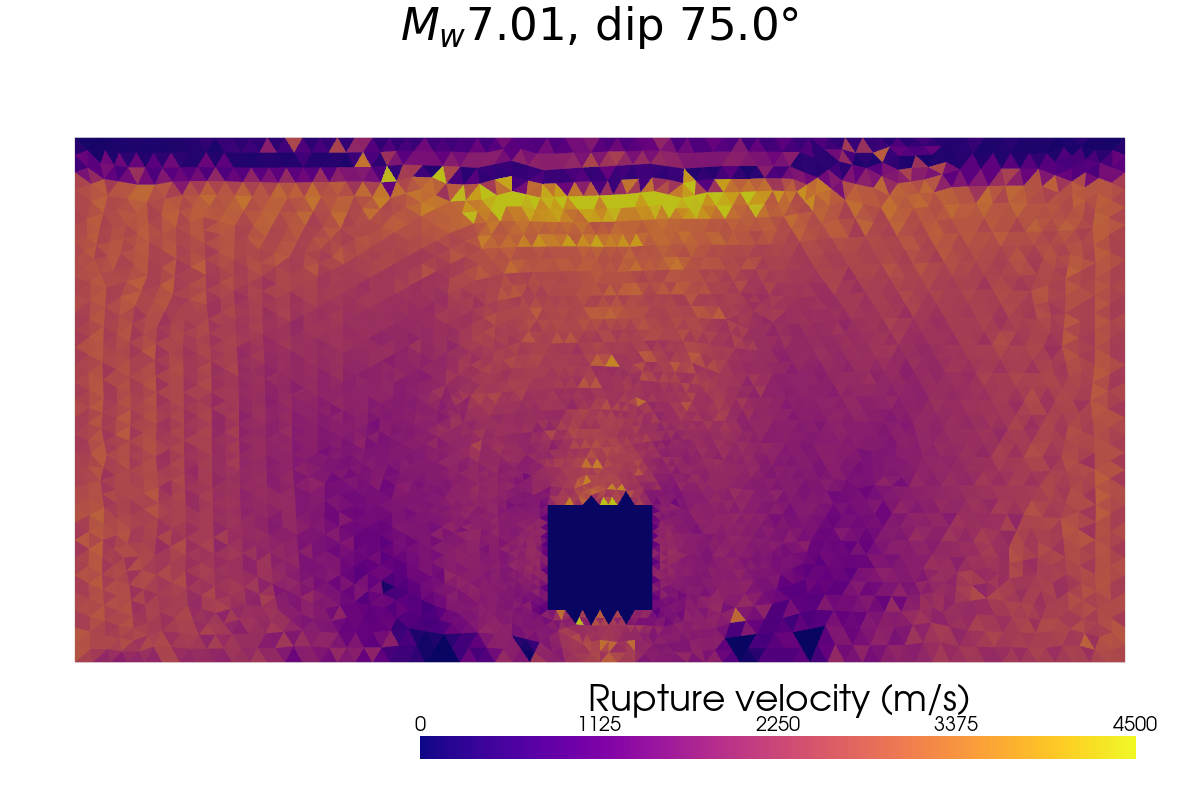

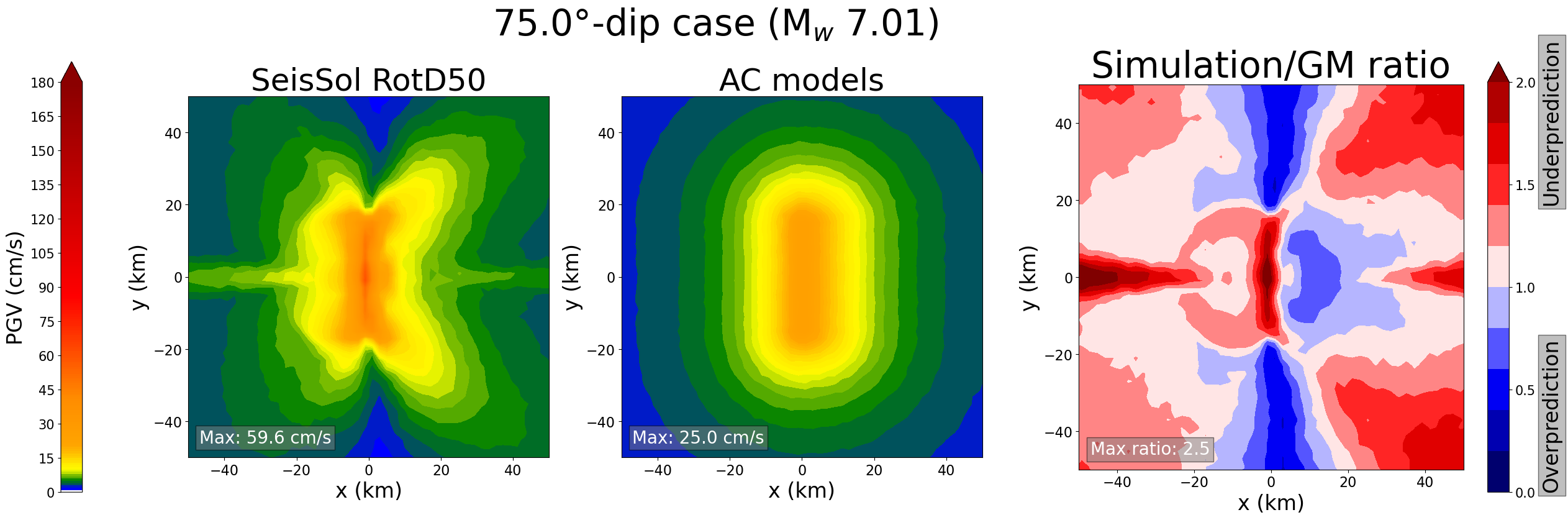

75° case

Reverse-slip scenarios

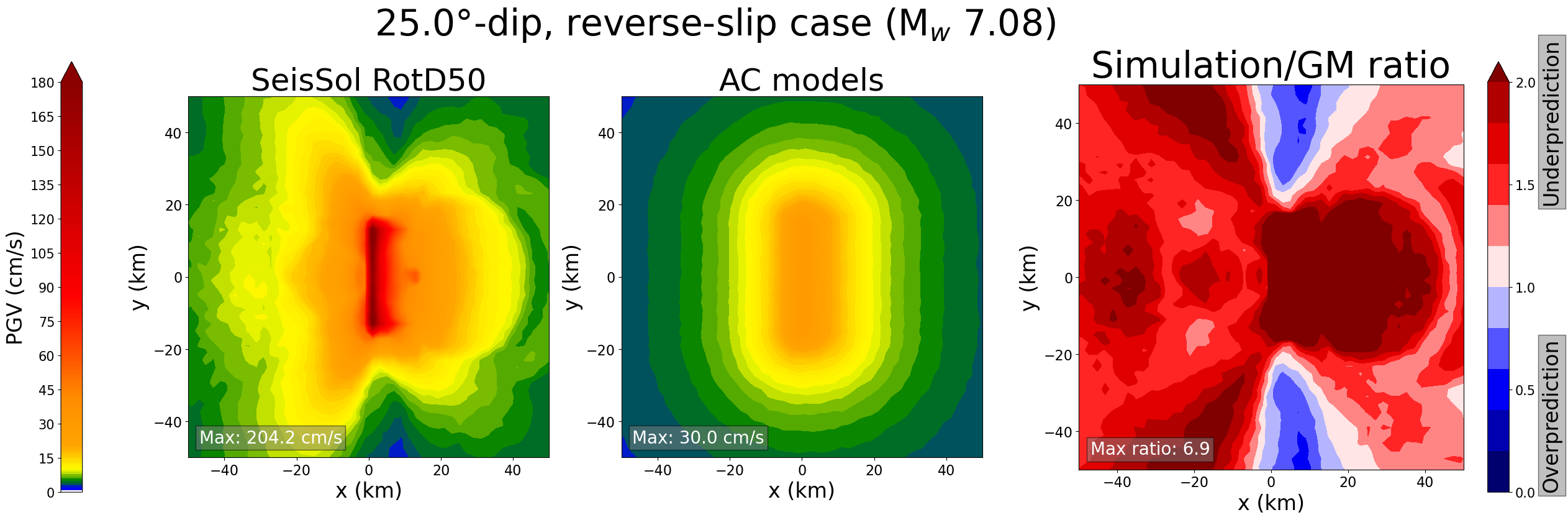

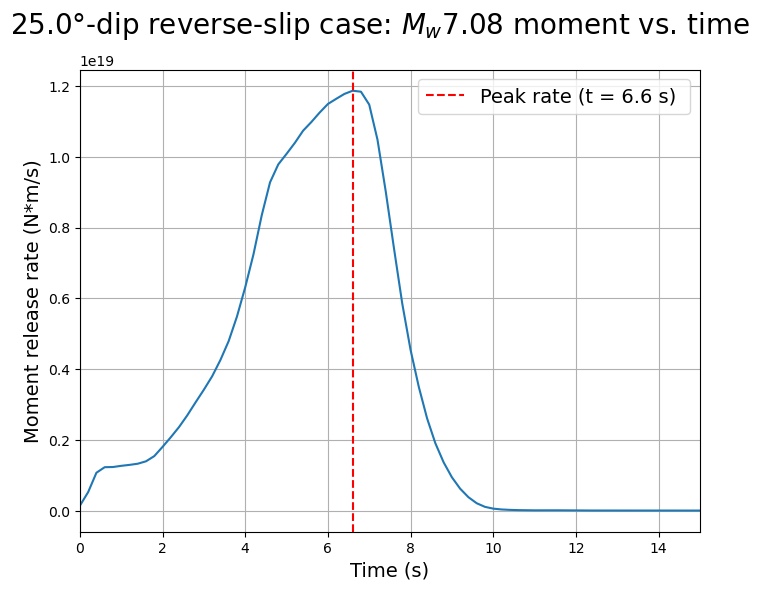

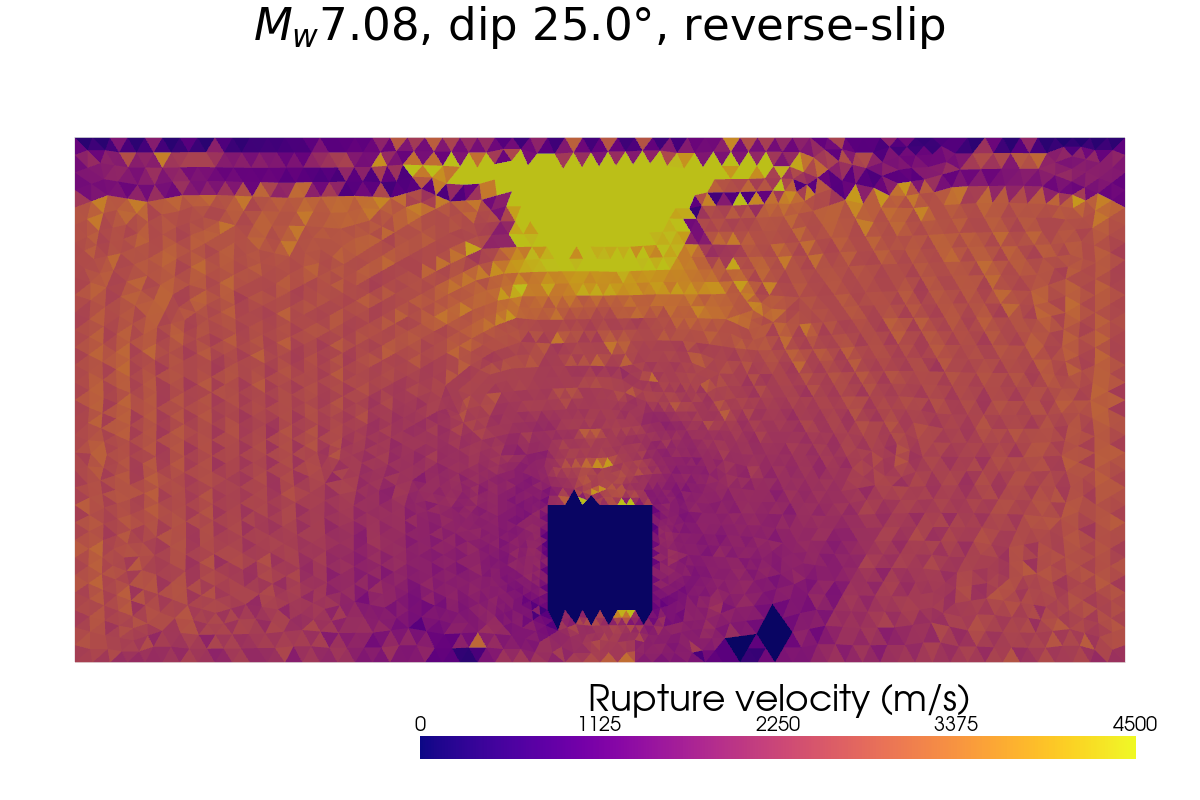

25° case

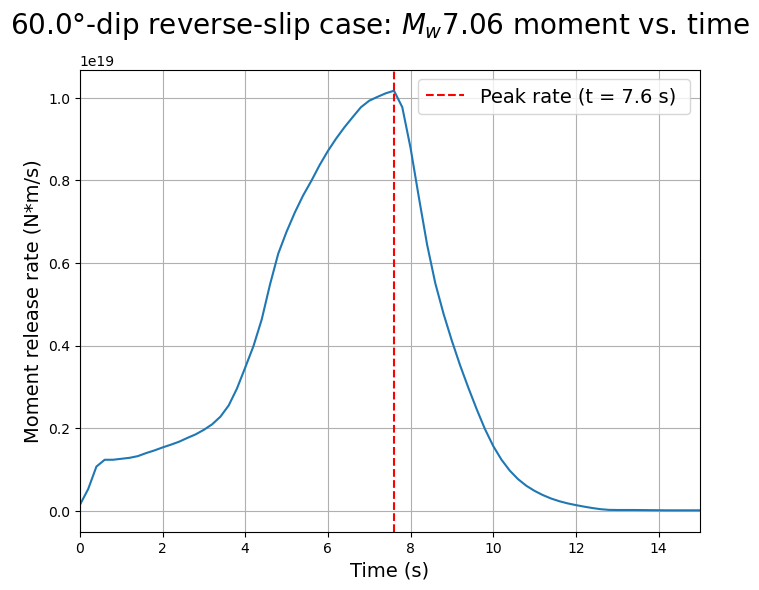

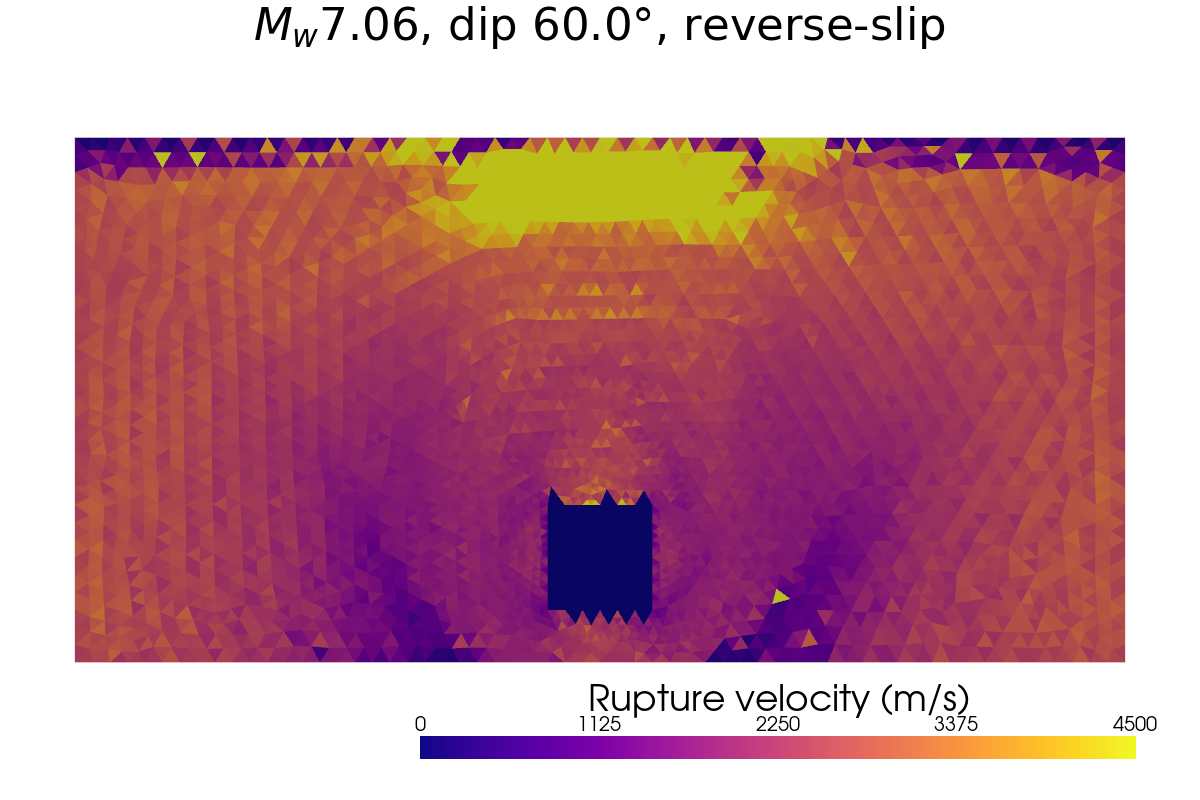

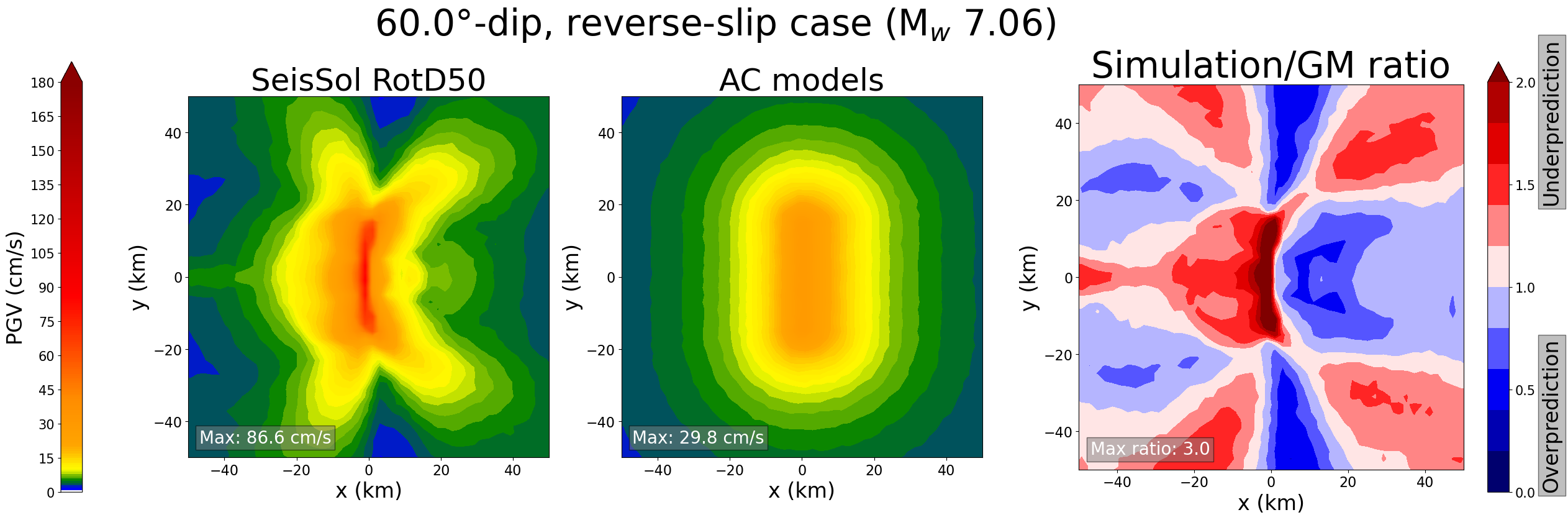

60° case

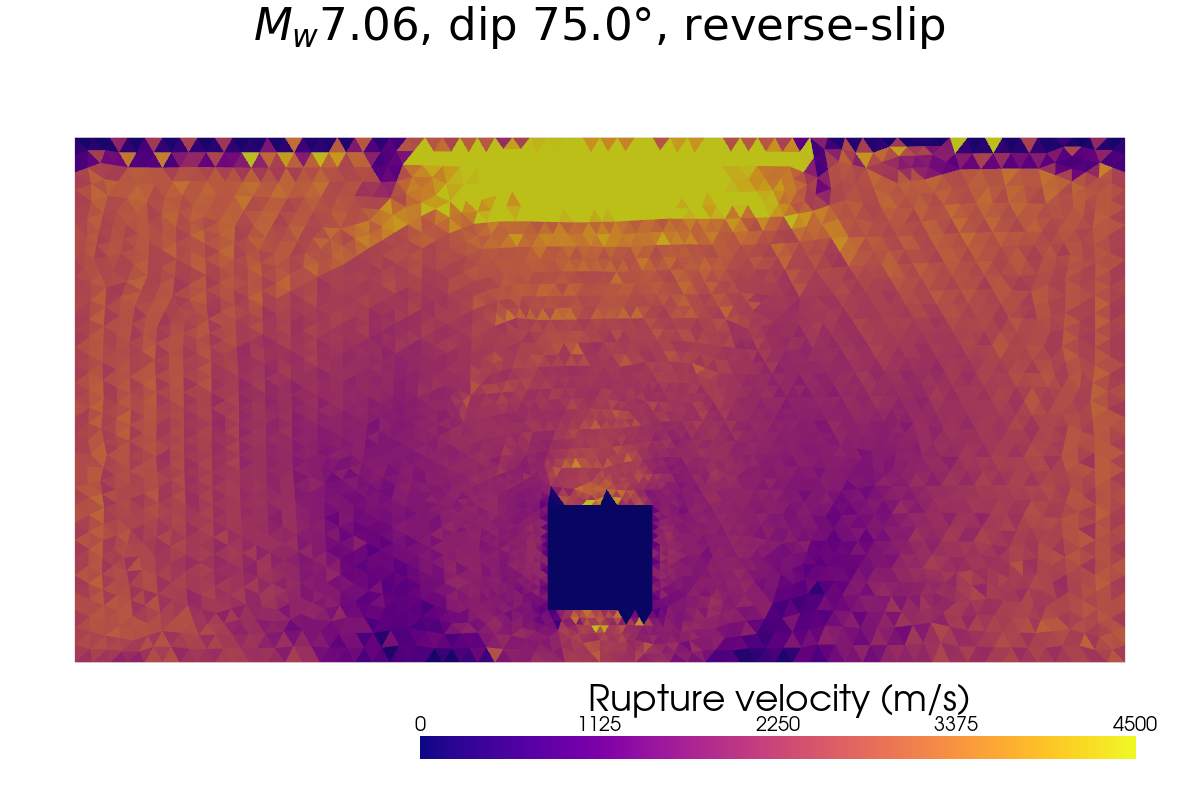

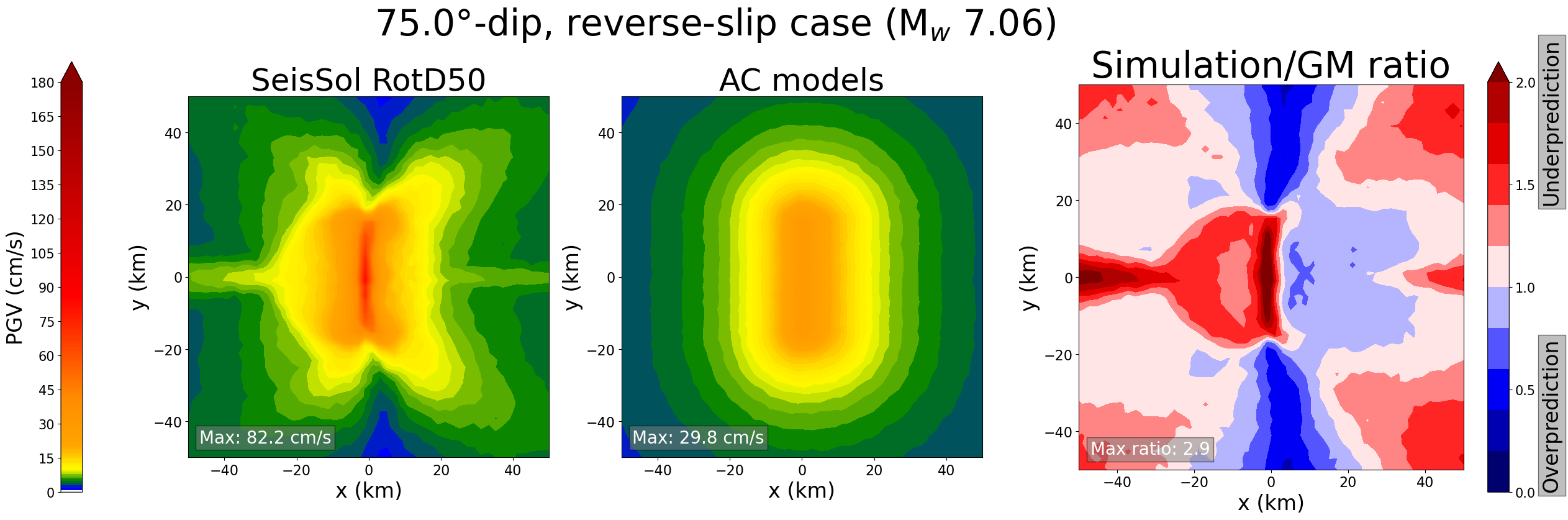

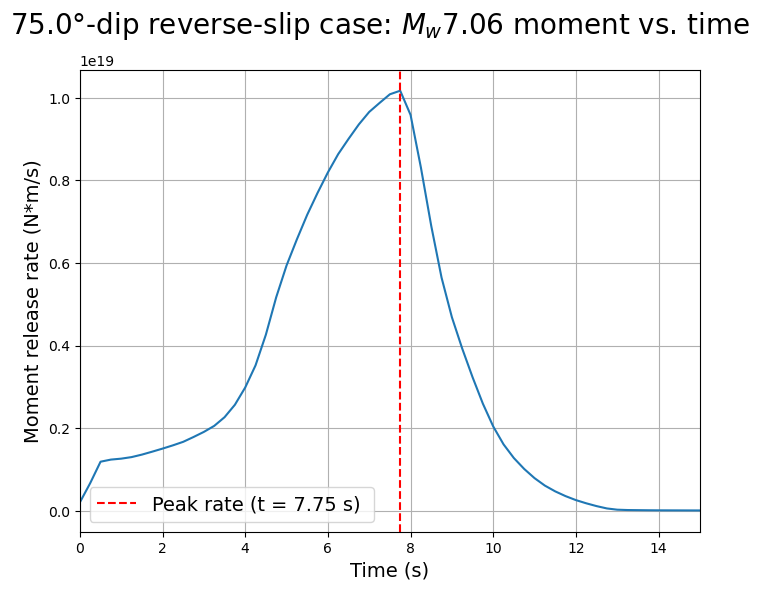

75° case

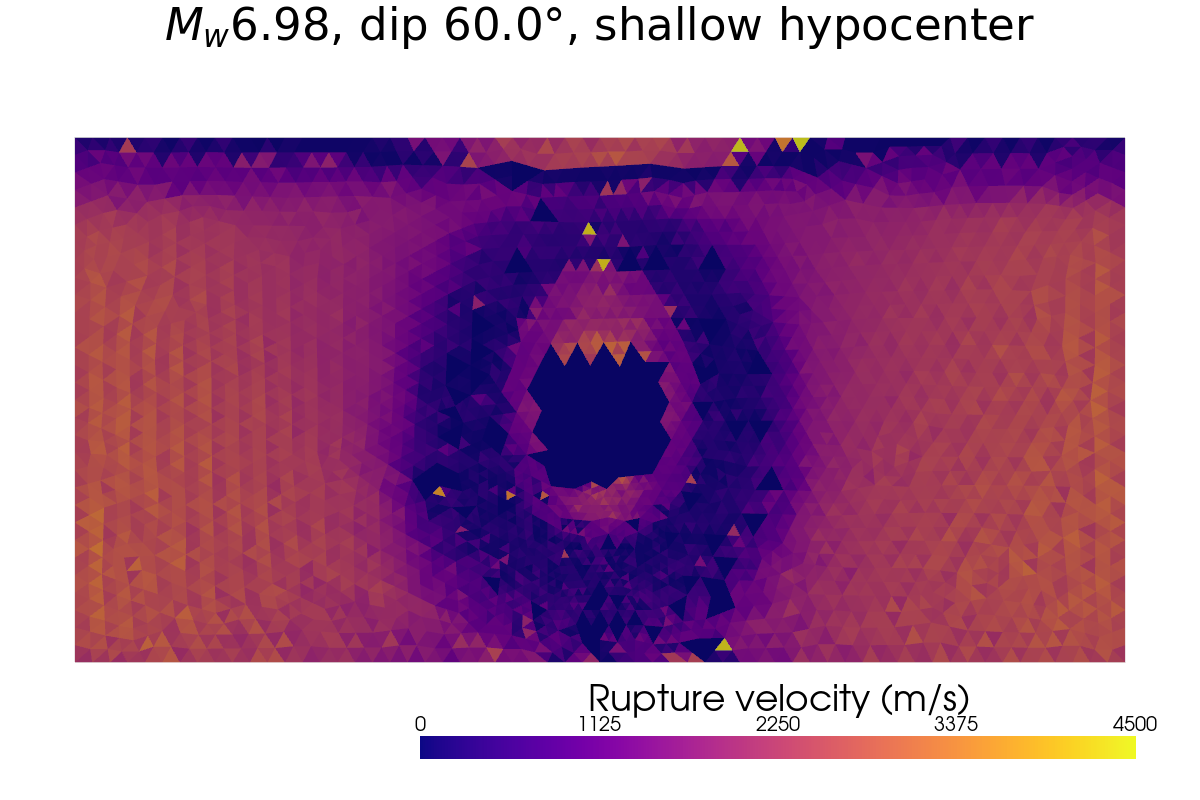

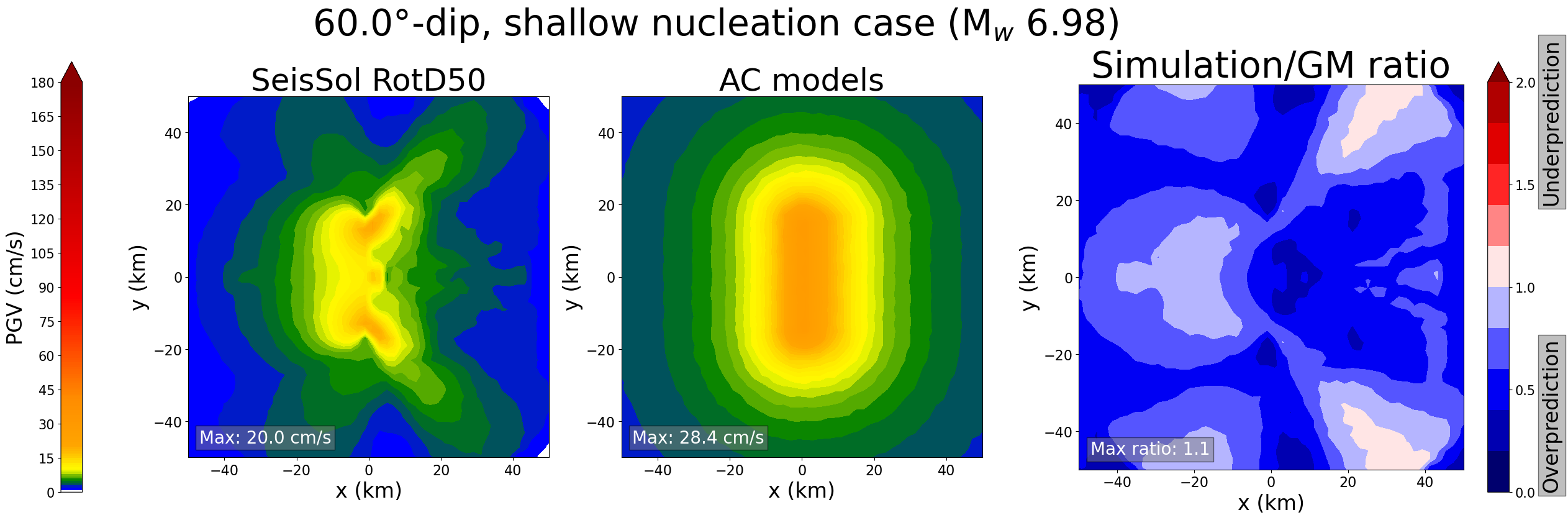

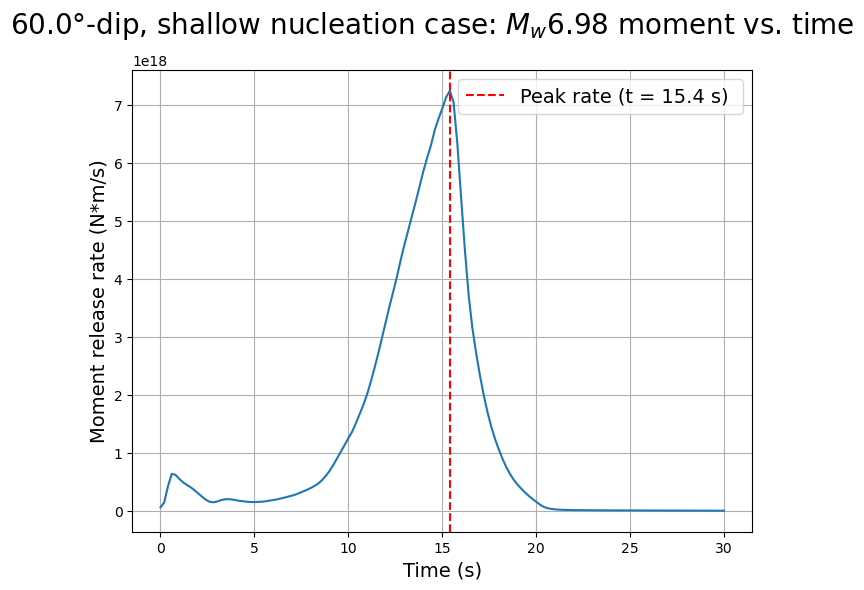

Shallow nucleation scenario

Nucleation patch depth	8 km downdip
